Description

SPECIFICATIONS

Output Signal: DC

Output Voltage: 12V/24V

Material: ABS

Certification: ce

Certification: EMC

Certification: GS

Features: Work with any dimmers

Input Signal: AC

Input Voltage: 220V

Item Type: Lighting Transformers

Weight: 0.2kg

Model Number: Dimmer-12V/24V

Protect Level: IP 20

Dimmable type: 0-10V & TRIAC

Output Frequency: 65k Hz

Item Type: Lighting Transformer

Product Feature

• 0/1-10v & traic Dimming 2in1.

• IP20 non-waterproof, indoor use or installed in a rainproof box.

• Ultra thin fanless cooling design, no noise from fan.

• 100% full load burn-in test.

• Protections: short circuit, over load, over voltage, over temp.

• Dimming interface: Triac/0-10v

• Apply to leading edge / trailing edge Triac dimmers and 0-10vdimming system.

• Built-in high performance MCU, dimming curve can be customized.

• Dimming range: 0~100%, LED start at 0.1% possible .

• Multi-current & wide voltage, suitable for different power LED.

• Short circuit / Over-heat / Over load protection.

• Class 2 power supply. Full protective plastic housing.

• Compliant with Safety Extra Low Voltage standard.

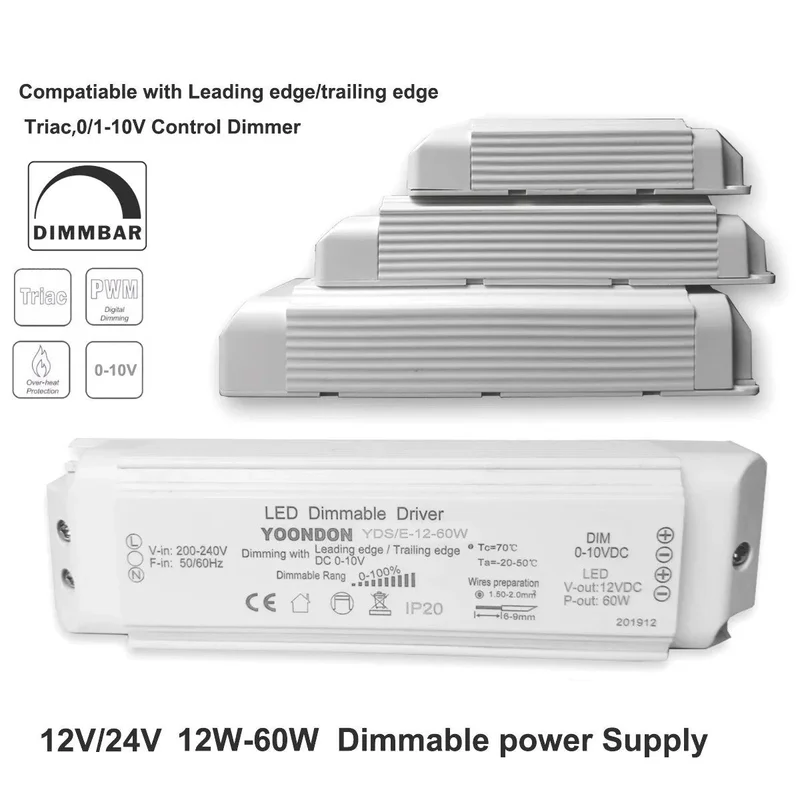

12V/24V20W Dimmable Power Supply

• VOLTAGE RANGE :AC200-240V

• FREQUENCY RANGE :47-63Hz

• DC VOLTAGE:DC 12V 1.66A 24V 0.83AOUTPUT

• CURRENTRANGE:0-20W

• Dimming interface:Triac/0-10V

• Dimming range: 0~100%, LED start at 0.1% possible.

• Efficiency: >82%

• Working temperature: ta: -30 ~ 55°C tc: 80°C

• Weight(G.W) :100g

12V/24V40W Dimmable Power Supply

• VOLTAGE RANGE :AC200-240V

• FREQUENCY RANGE :47-63Hz

• DC VOLTAGE:DC 12V 3.33A 24V 1.66AOUTPUT

• CURRENTRANGE:0-40W

• Dimming interface:Triac/0-10V

• Dimming range: 0~100%, LED start at 0.1% possible.

• Efficiency: >82%

• Working temperature: ta: -30 ~ 55°C tc: 80°C

• Weight(G.W) :200g

12V/24V60W Dimmable Power Supply

• VOLTAGE RANGE :AC200-240V

• FREQUENCY RANGE :47-63Hz

• DC VOLTAGE:DC 12V 5A 24V 2.5AOUTPUT

• CURRENTRANGE:0-60W

• Dimming interface:Triac/0-10V

• Dimming range: 0~100%, LED start at 0.1% possible.

• Efficiency: >82%

• Working temperature: ta: -30 ~ 55°C tc: 80°C

• Weight(G.W) :280g
