Description

ShineRetrofits Input:

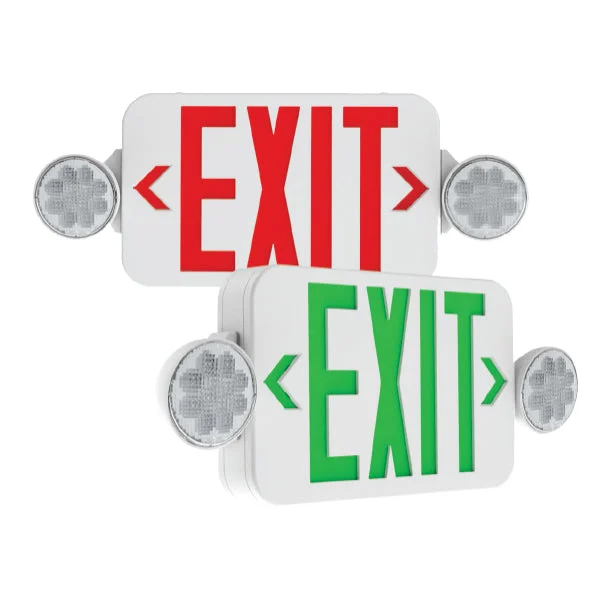

The Barron Lighting QCRS is a 1.5-watt LED Double Head Lamp Slim Thermoplastic Exit Sign Combo featuring Red/Green LEDs. It features a universal field-selectable single-/double-face design and includes a snap-in canopy for easy top-mount installations. This fixture is suitable for damp locations, ensuring versatile application in various environments.

Features:
• Universal, field-selectable red/green LEDs and color-matched diffusers eliminate the need to stock both colors
• Universal field-selectable single-/double-face
• Two (2) 1.5W fully adjustable round heads with long-lasting high-intensity LED lamps
• Easy snap-out, field-selectable chevrons
• Suitable for Damp Locations
• California Energy Commission (CEC) Title 20 Compliant

Specifications:
• Illumination: Legend: Field-selectable red or green LEDs, includes color-matched diffusers Lamps: Two (2) fully adjustable long life, high-intensity LED lamp heads, 1.5W per head
• Housing: Injection-molded UL 94 V-0 flame-retardant, highimpact resistant thermoplastic enclosure
• Electrical Input: 120/277VAC Dual primary, 60Hz
• Battery: Maintenance-free 3.6V NiCad battery
• Operating Temp: 0°C to 40°C (32°F to 104°F)
• Run Time: 90 Minute emergency run time, 24-hour recharge time
• Legend: Fully illuminated 6″ characters with 3/4″ stroke
• Mounting: Ceiling or wall mount
• Finish: White
• Certifications: UL 924 Listed for Damp Locations Meets NFPA 101 Life Safety Code, NEC, OSHA California Energy Commission (CEC) Title 20 Compliant
• Warranty: Any component that fails due to a manufacturing defect is guaranteed for three years with a separate five-year prorated warranty for NiCad batteries. The warranty does not cover physical damage, abuse, or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and conditions apply)
