Description

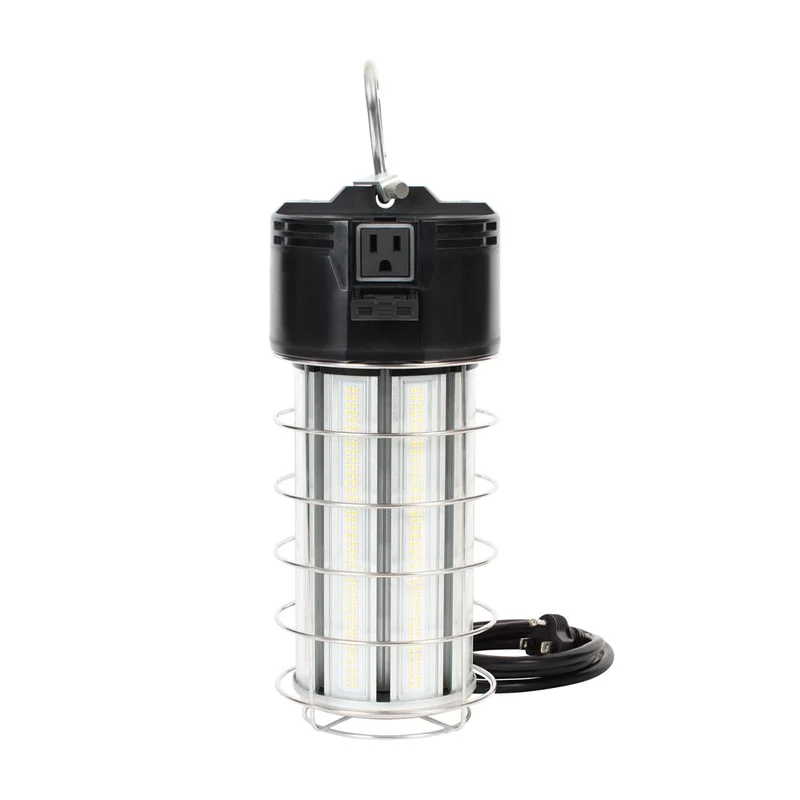

EPCO 15723 150 Watt LED TIGERcub Temporary Luminaire with Receptacle

ShineRetrofits Input:
EPCO’s TIGER LED luminaires are an energy efficient and affordable solution that are also extremely versatile. They can function in a variety of applications including high and low bay lighting applications with 360 degrees of illumination. They can also be used as an alternative to metal halide light fixtures for temporary construction lighting consuming less than half the total energy costs.  Meets OSHA Compliance Standard 1915.82(b) for Temporary Lights.

Benefits:
• No assembly required! Ready to use out of the box.
•  Small size, light weight, and easy to use.
•  Lower power consumption and significant energy savings for 24 hour a day usage
compared to other temporary LED luminaires.
•  No lamp maintenance required.
•  Minimum operating temperature -20 to 40° C (-4° to 104°F).
•  Meets 2023 National Electrical Code Article 410.62(B)(C) and 410.64 Article C.
•  Meets OSHA Compliance Standard 1926.56(a) for Temporary Lighting:
   30-foot spacing for minimum of 5-foot-candles

Features:
• Omni-directional luminaire; directs 100% of the light outward and downward.
•  Weighs just 6 pounds — highest lumen output to weight ratio on the market.
•  Suitable for dry and damp locations.
•  Durable stainless-steel cage with no risk of color fading, rusting or distorting.
•  Input Voltage: 120 VAC @ 60 Hz only.
•  Cord Length: 5-feet (1.8m).
•  Cord Type: 18 AWG SJTW with NEMA 5-15 Plug.
•  NEMA 5-15 Receptacle allows luminaires to be daisy-chained together.
•  Carabiner Style Hang Hook expedites installation to rebar or pipe

SPECIFICATIONS:
•  Output Lumens: 12,00 Lumens (100-Watts)
    22,500 Lumens (150-Watts)
•  Power Consumption: 100-Watts or 150-Watts
•  Amperes: 1.0 (100-Watt) or 1.6 (150-Watt)
•  Operating Voltage*: 120-Volts only
•  Power Factor: ≥ .9
•  Correlated Color Temperature (CCT): 5000K
•  Color Rendering Index (CRI): ≥80
•  L70 Lumen Depreciation**: 50,000 Hours
•  Operating Temperature: -20 to 40° C (-4° to 104°F)
•  Applications: Dry or Damp Locations
•  Certifications:
» ETLus Listed
» Meets the requirements of the 2020 National Electrical  Code, Articles 410.62(C)(1) and (2)
•  Cord Length/Type: 5-Feet/18AWG SJTW
•  Plug and Receptacle Type: NEMA 5-15
•  Efficacy***: 150 lpw
•  Warranty*: 3-Years
•  Linkable Maximum: Six (6) 100-Watt or Four (4) 150-Watt
   TIGERcub LED Temporary Luminaires

Typical Applications:
•   New Building Construction or Renovation.
•  Low to Medium Bay Warehouse Lighting.
•  Miscellaneous Maintenance Tasks.
•  Indoor Parking Garages.
•  Grocery Stores.
•  Retail Stores.
•  Mezzanine Areas.
•  Outdoor Areas.
•  Schools and University Gymnasiums
