Description

EVEURWEI-AF-24K

EVEURWEI AF 24K

EVEURWEIAF24K

For more information, open this spec: PDFDual-Lite Emergency Lighting

Application

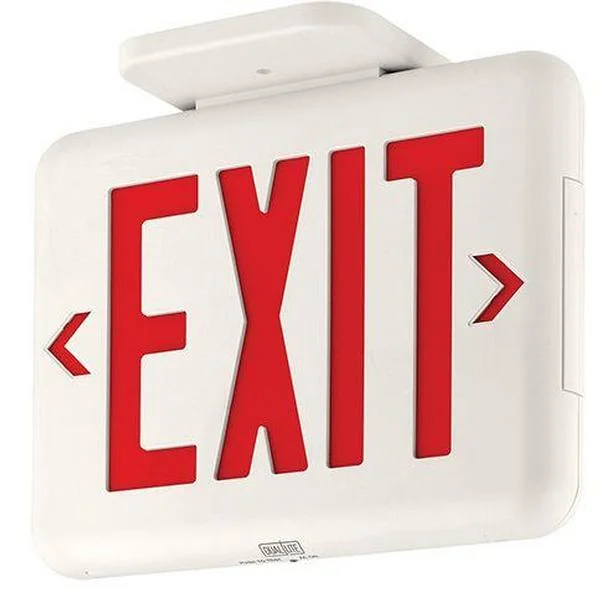

The EVE series is a compact architectural LED exit sign designed for fast installation and reliable service. The EVE Series has a flame-rated, UV stable thermoplastic housing with a lightly textured white or black finish. Available in AC only or emergency operation which includes a nickel metal hydride(NiMH) battery and provides a full 90 minutes of emergency exit illumination in the event of power failure. Includes a constant current charger. The EVE accepts 120/277VAC input at 60Hz and optional 220-240VAC input at 50 or 60 HZ with self-diagnostics option.

Features

• Architectural LED based exit and emergency light for wall, ceiling or end mounting commercial applications.

• High impact, flame rated and UV stable with thermoplastic housing.

Options

• 2C- 2 circuit operation

• FAP- fire alarm panel

• FM- flasher module

• AF- audible flasher

• DC- remote DC operation

• 24K- 220-240VAC output

Accessories

• EV unit indoor emergency light

• EVC exit sign/LED emergency Light

• Vandal resistant shield

• Wall and ceiling mount wire guard

• Pendant mounting kit (Black/White)

Temperature Range

• 68°F – 86°F (20°C – 30°C)

Compliance

• Listed UL924 Standard

• NFPA 101 (Life Safety Code)

• NFPA 70 (National Electrical Code)

• Damp Location (Consult Factory)
