Description

ShineRetrofits Input:

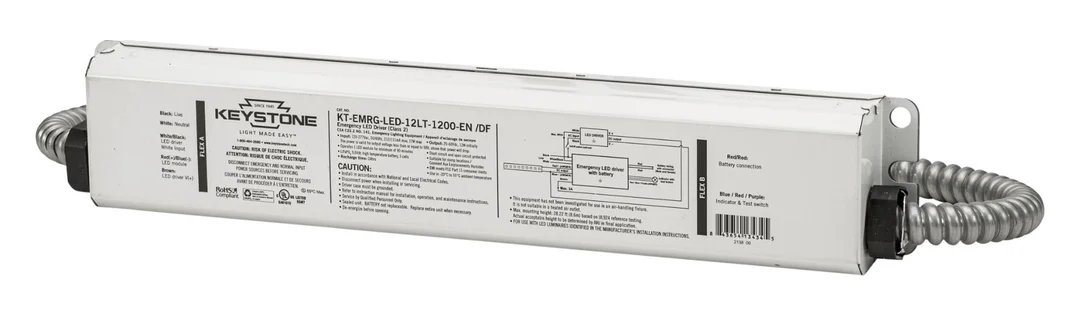

Keystone’s LED Emergency Back-up operates within a temperature range of -20ºC (-4ºF) to 55ºC (122ºF) and includes a built-in heater for low-temperature operation. It is designed to drive LED loads at a nominal power of 12W for a minimum of 90 minutes. The device meets FCC Part 15 (Class B) consumer limits and is equipped with short circuit, overload, and open load protection. It is suitable for use in both dry and damp locations and has been evaluated to comply with UL 924 standards. A 3000mAh LiFePO4 battery powers the unit and features dual flex conduit that fits into ½” knockouts.

Features:
• Operating temperature: -20ºC/-4ºF to 55ºC/122ºF
• Built in heater for low temperature operation
• Drives LED loads at 12W (nominal) for a minimum of 90 minutes
• Meets FCC Part 15 (Class B) consumer limits
• Short circuit overload and open load protection
• Suitable for dry and damp locations
• Evaluated to UL 924 standards
• Class 2 output
• Input frequency: 50/60 Hz
• Test switch/Charging indicator light and wall plate included
• Battery capacity: 3000mAh; LiFePO4
• Dual flex conduit fits into ½” knockouts
• Listed for field or factory installation: UL 924 and CSA C22.2  no. 141 emergency lighting compliant
