Description

ShineRetrofits Input:

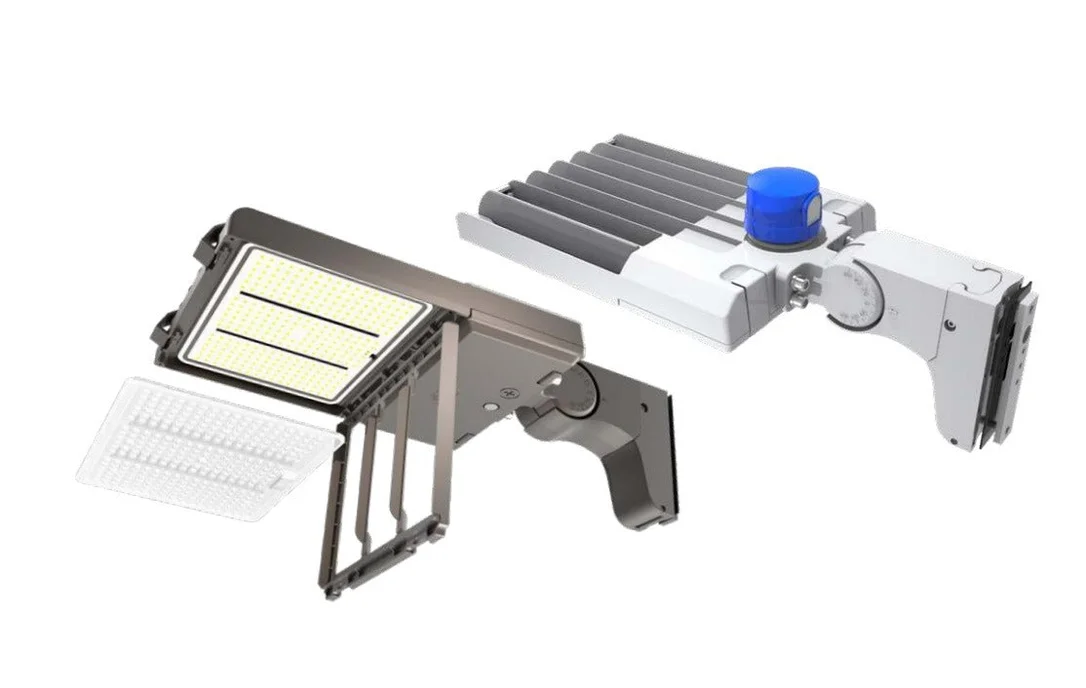

Keystone’s Pole Mounted LED Area Light Fixture is versatile and designed with advanced Power Select and Color Select technologies. Featuring an innovative tool-free lens change system, this fixture allows for quick optic swaps, making it ideal for various applications. Its low-profile, heavy-duty aluminum housing ensures durability and enhances site aesthetics, while the true U0 design minimizes sky glow for dark-sky-friendly performance. With a pre-installed adjustable pole mount kit and integrated NEMA/ANSI twist-lock receptacle, this fixture simplifies installation and photo control, offering robust and efficient outdoor lighting solutions.

Features:
• Keystone Power Select technology (see Performance Specifications for details)
• Keystone Color Select technology (3000/4000/5000K)
• Innovative optic swap capability under the door frame and latch design for a quick, tool-free lens change
• Three lenses in the box: Type III installed, Types IV and V included
• Type II lens sold separately. See below for details
• Heavy-duty, die-cast aluminum housing with ample heat-sinking
• Low-profile design delivers high-performance illumination and improves application site aesthetics
• True U0 design for dark sky-friendly performance that eliminates undesirable sky glow
• Integrated NEMA/ANSI C136.10 7-pin twist-lock receptacle with 3-pin photocell and shorting cap. Standard on all fixtures simplifies ordering requirements for photo control needs
• Comes with a pre-installed adjustable pole mount kit for easy and quick mounting to square or round poles. Can be used with KT-ALED-WM-1-KIT, wall mount adaptor (sold separately)
• Keystone 0-10V dimming driver with 6kV surge protection
• Ambient operating temperature: −40°C/−40°F to 50°C/122F
• UL Certified, IP65 rated
• Power factor: > 0.95
• THD: < 20%
• LED chip lifetime: L70 > 100,000 hrs @ 25C°/77°F ambient fixture temperature
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
