Description

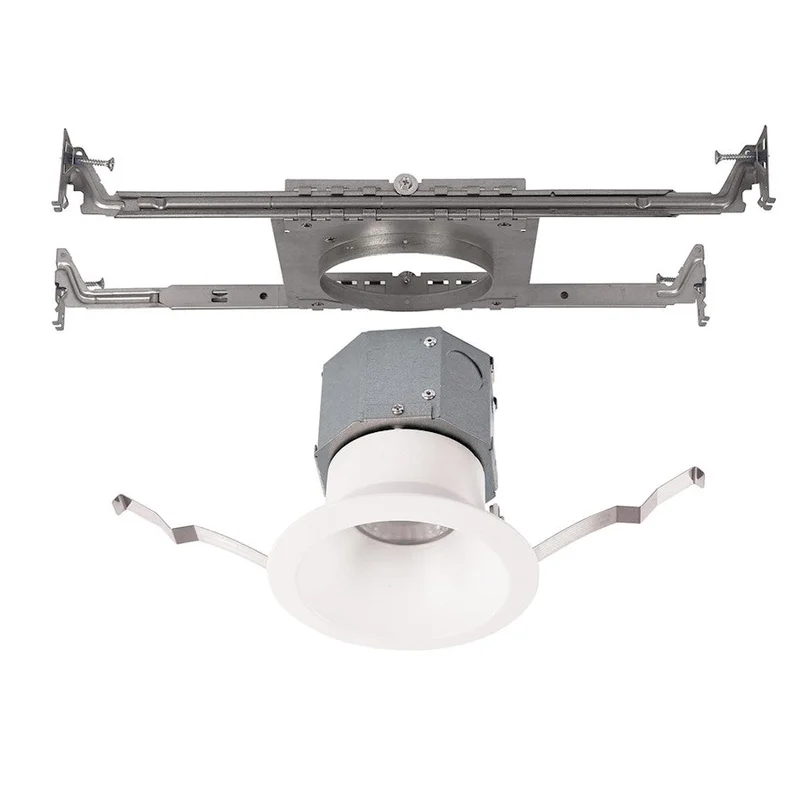

Pop-in is a powerful 1,000 Lumen minimum profile recessed downlight with driver and electrical connection junction box attached to the fixture for an easy installation. The new construction version includes a frame-in kit for installation in a new construction application. The remodel version does not includes frame-in kit, but it can be purchased separately (R4DRDN-FRAME).

• Part of the Pop-in Collection
• Finish: White
• Made of Aluminum

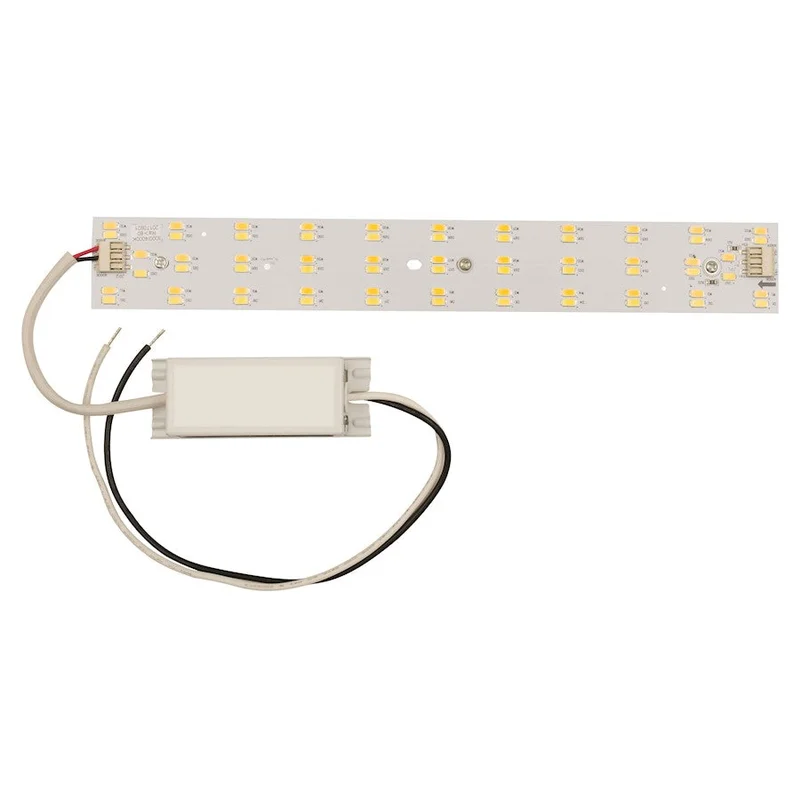

• (1) 12W LED Bulb
• Bulb Included
• Bulb Color Temp: 3000
• Bulb Average Hours: 50000
• Bulb Lumens: 1250
• Bulb Beam Spread: Flood
• Bulb Shape: LED Module
• Bulb CRI: 90
• Voltage: 120-240-277
• Number of Packs: 2, 6
• Electrical wiring box directly on the back of fixture. Construction: Die-cast aluminum with frosted TIR lens.
• R4DRDN includes a new construction frame-in kit for installation in a new construction application. R4DRDR excludes the frame-in kit, and is for intended to be installed in remodel applications.
• Installs into ceiling thickness between 0.5in and 1.5in. Universal input driver 120V-220V-277V.
• Dimmable: ELV, TRIAC
• Height (Min-Max): 14.5-24.5
• Length of the Wire: Airtight: Yes”
• Safety Rating: ETL, cETL
• For Use in Wet Locations
• Warranty Info: 5 Years Functional, 2 Years Finish

Overall Dimensions: 14.5″(L) x 8.58″(W) x 4.63″(H)

Back plate/Canopy Dimensions: Cutout: 4.25″(L) x Trim Size: 5″(W) x Aperture: 5″(D) x IC Rating: Yes”(Dia)

Item Weight: 9.05, 27.29 lbs.
